METHOD B1
MOISTURETRANSMISSION RATE TESTER

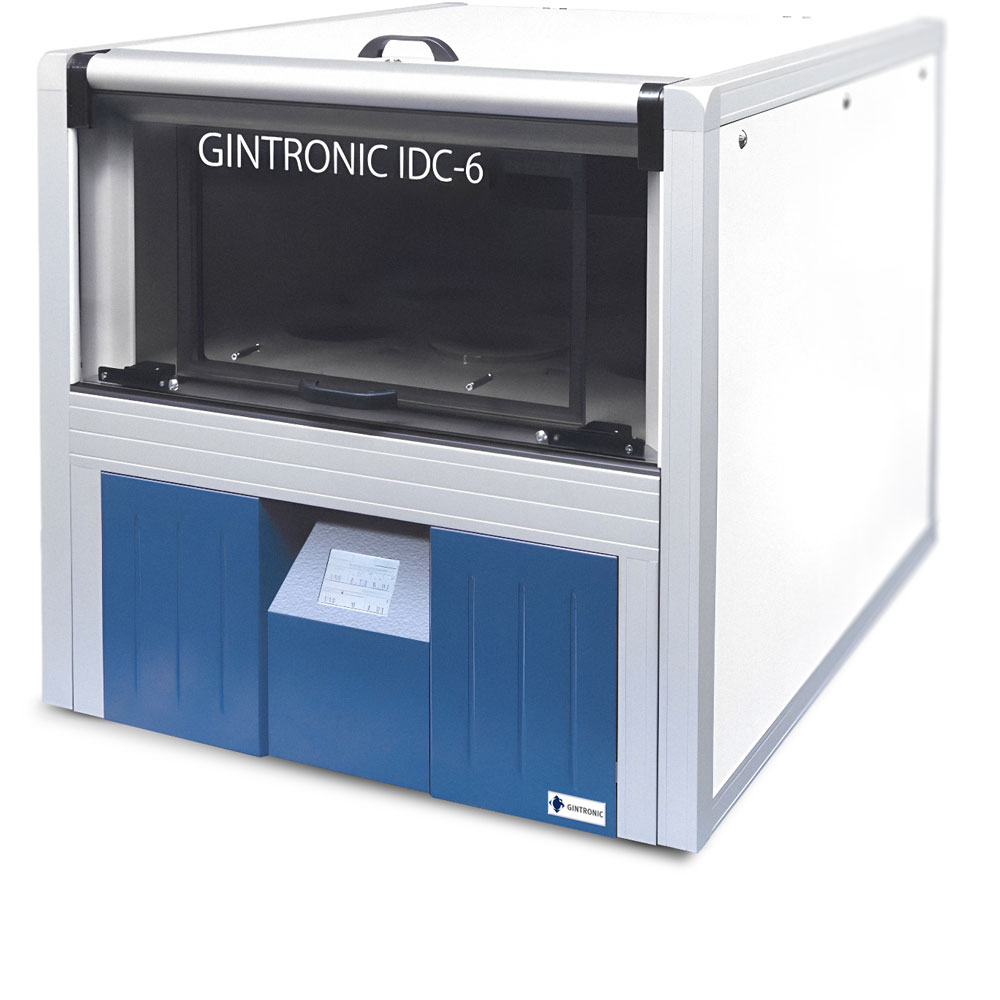

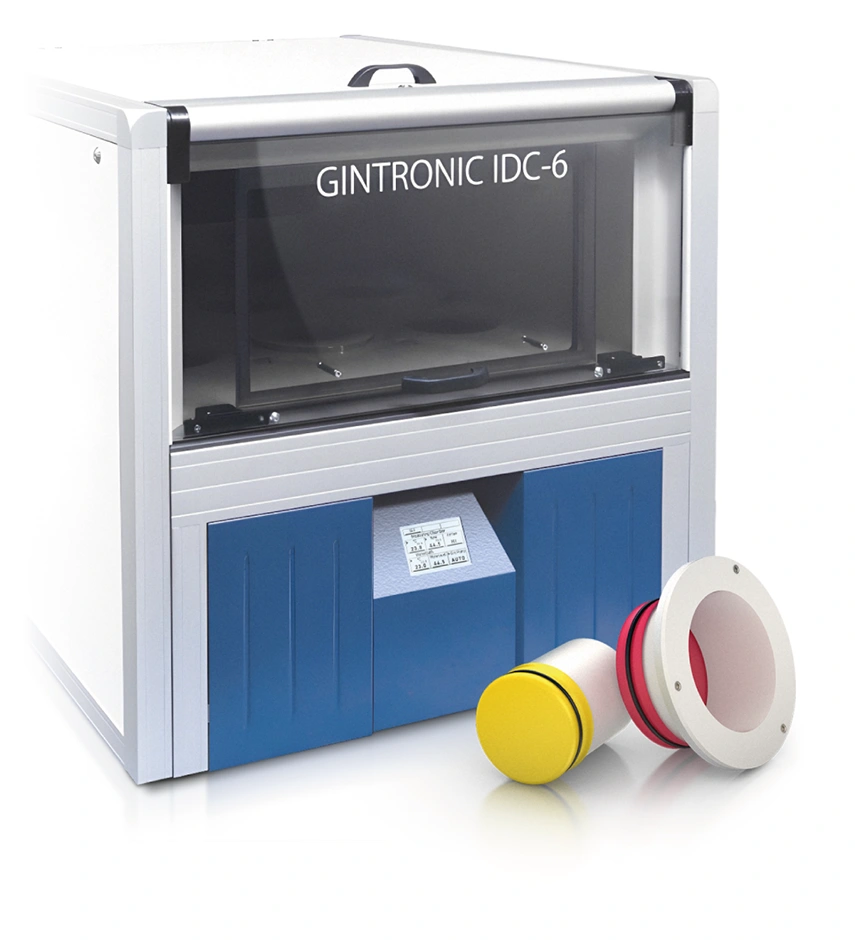

Inverted MVTR Tester GINTRONIC IDC-6
Zur Bestimmung der Wasserdampfdurchlässigkeit von Geweben, Folien, Filmen und anderen flächigen Materialien auf der Grundlage der inverted drycup Methode.
The JIS L1099 B1 + B2 is one of the most common standards for measuring the Moisture Vapour Trans-mission Rate of fabrics and textiles, used for outdoor and sport activities.
As JIS L1099 B1+B2 requires a water bath with 23°C in a room with 30°C, GINTRONIC IDC-6 is the ideal all in one solution for this test.
GINTRONIC IDC-6 is offering for this a state of theart tester, with automatic temperature control of the waterbath AND the temperature in the test chamber.
As JIS L1099 B1+B2 requires a water bath with 23°C in a room with 30°C, GINTRONIC IDC-6 is the ideal all in one solution for this test.
GINTRONIC IDC-6 is offering for this a state of theart tester, with automatic temperature control of the waterbath AND the temperature in the test chamber.

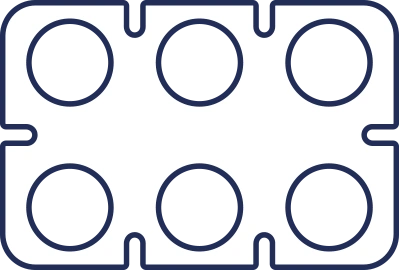

With the IDC-6 you can measure 6 samples at the same time.
Measuring Methods

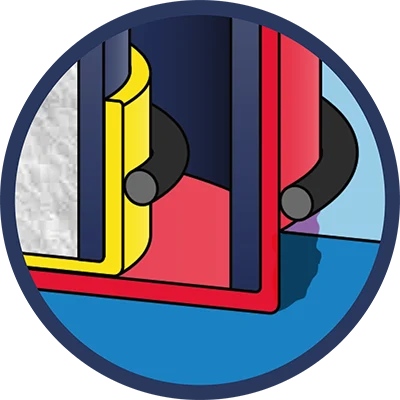

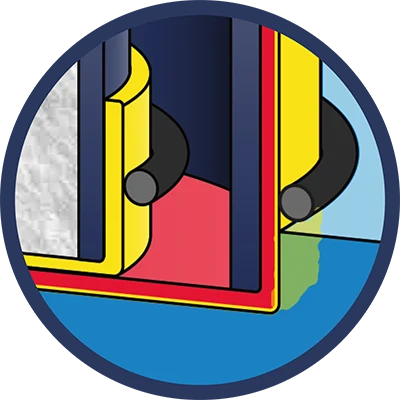

GINTRONIC IDC-6 supports JIS L1099 method B1+ B2 and optional ISO 15496 by using test assemblies with other dimensions. The difference between B1 and B2 method is, that the sample in B2 method is covered by an additional PTFE membrane. This is necessary, when the sample is not impermeable against water.
METHOD B2 (ISO 15496)
Measuring

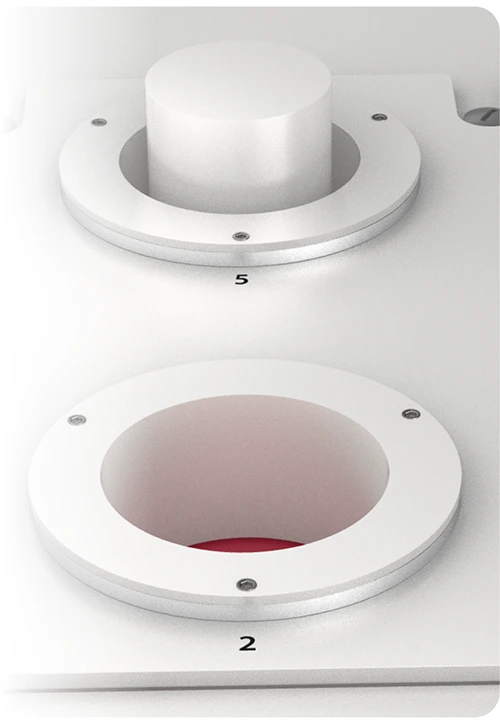

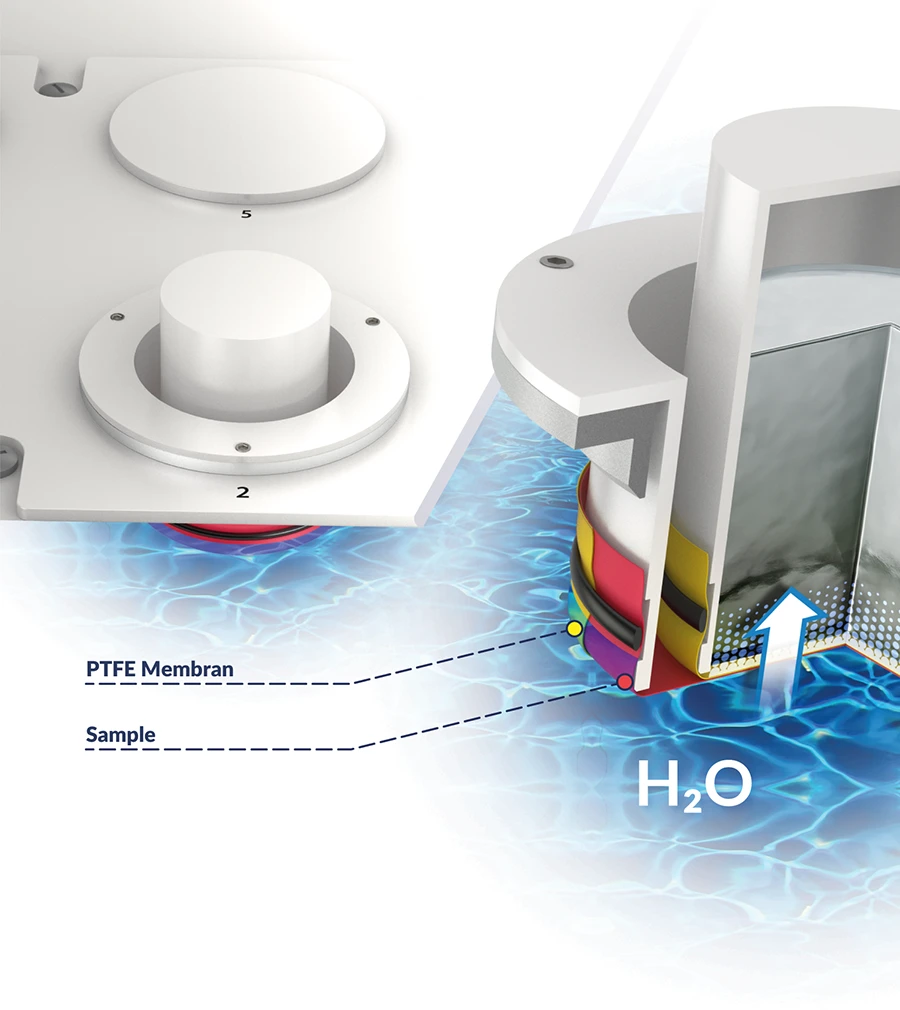

The sample is attached to a sample holder and placed in a waterbath. The measuring cup is filled with a saturaded potassium acetate solution and sealed with a PTFE membrane.
The measuring cups are placed on the sample for 15 minutes. The moisture vapor which is passing the sample is captured by the measuring cup. Weighing this weight gain gives directly the MVTR in g/d/m².
Easy and userfriendly
input of the temperatures via

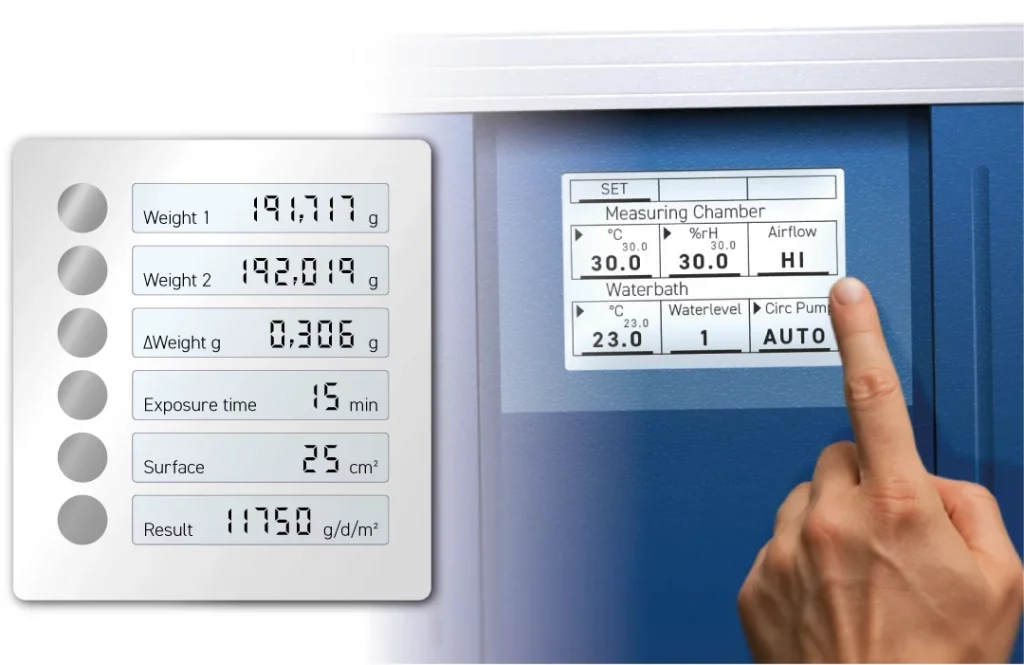

integrated Touchscreen.
prepare
conditioning> 15 min
fill
prepare
weigh
measure 15 min
weigh
Integrated Humidity Control
testchamber is maintained below a user pre-defined value (20-60%r.H.)
Integrated Temprature Control
selfcooling of the testchamber up to 3°C below ambient temperature
selfheating and cooling of the waterbath from -7°C to 0°C below the setpoint of the temperated chamber.
Waterlevel Control
Automatic water level control for the water bath.
All specifications are related to a room with an ambient temperature of 23 +/- 1°C and a relative humidity of 50 +/-5%r.H.
Subject to modifications in the interest of technical progress. Device conforms to valid CE-norms.
Technical Data
Conforms to JIS L1099 B1 + B2 (Method A1 and A2 are not supported – for this the GINTRONIC Gravi-Test is recommended).
Conforms to ISO 15496 by using optional test assemblies with different dimensions.
Microprocessor controlled
Easy and userfriendly input of the temperatures via integrated Touchscreen.
Compressed Air with 6 bar needed.
Voltage: 230 VAC or 115/110 VAC.
Dimensions: approx. 700 x 650 mm
Weight without PC: approx. 55 kg
